- Noah 6 TPM
BL-NOAH6_V10.TPM

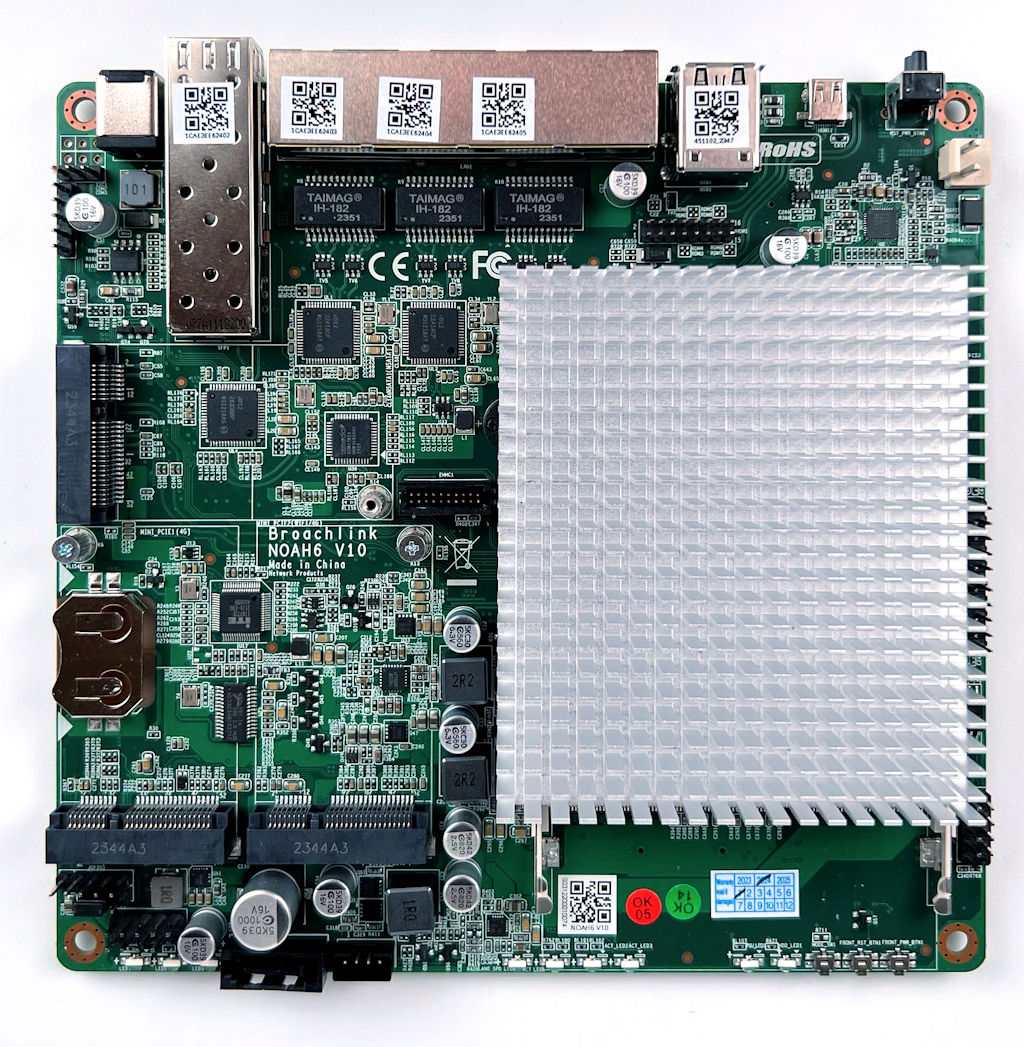

Noah 6 motherboard
Intel E3845 AES-NI, 4 cores 1.91 GHz (memory upto 8 GB), 3 LAN Gigabit, 1 SFP Gigabit, 2 miniPCIe, 1 mSATA, USB 2.0/3.0, onboard TPM2.0
Noah 3 is reliable and powerful fanless hardware for 24/7 devices and more
- Industrial environment (router, hardware controller, control panel interface, ...)
- Telecom (router, IPBX, VoIP gateway, LTE, WiFi controller, etc.)
- Network (firewall router, aggregator, VPN server, NAS, video surveillance, …)
- Security (VPN server, analyzer, packet inspector, …)
- IoT (gateway, concentrator, on-site controller, on-site analyzer, …)
- Prototyping (proof of concept, Geek hobbyst, …)
- And your equipment, contact us...
Specification
| Processor System | CPU: Intel Atom E3845 |
| Core: 4 | |
| Frequency: 1.91GHz | |
| L2 Cache: 2MB | |
| BIOS: AMI 64 Mbits | |
| AES: AES-NI | |
| Memory | Technology: DDR3L 1333MHz |
| Max. Capacity: 8 GB (Should be installed in factory) | |
| Socket: 1 x 204 pin SODIMM | |
| Security | Onboard TPM 2.0 |
| Display | micro HDMI |
| Ethernet | 3 x RJ45 Gigabit Intel I210AT |
| 1 x SFP Gigabit Intel I210AS | |
| WatchDog Timer | Output: System reset |
| Internal Watchdog timer: (programmable 1-255s,1-255min, disable) | |
| Storage | mSATA: 1 x full size mSATA |
| eMMC: 1 (eMMC 4.5, Support Broachlink eMMC modules) | |
| SATA: 1 x SATAII (Max. Data Transfer Rate up to 3.0 Gb/s) | |
| Internal I/O | Up to 3 Serial: 1 x RS-232 ,2xTTL (Transfer rate up to 1 Mbit/s) |
| Ethernet: Up to 3 GbE | |
| Reset Button: 2 | |
| Power Button: 2 (For system wake) | |
| USB: 3 x USB2.0 + 1 x USB3.0 | |
| GPIO: 24-bit GPIOs | |
| Expansion | MINI_PCIE1 slot has PCIe, SIM and USB signal for (4G/LTE). MINI_PCIE2 slot has SIM and USB signal for (4G/LTE). |
| mSATA: 1 | |
| Power | Power input: 12V ±10% only |
| Power Consumption (Typical,Minimum system) Noah with E3845: 0.5A @ 12V (5.28W) | |
| Power Consumption (Max, test in pfSense) Noah with E3845: 1A @ 12V (12W) | |
| Environment | Operating 0 ~ 60° C (32 ~ 140° F) (Operating humidity: 40° C @ 95% RH non-condensing) |
| Non-Operating -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Physical Characteristics | Dimensions (L x W): 160 x 152 mm (6.3" x 5.99") |
| Weight: 0.45 kg (0.99 lb) (with heatsink) | |
| Total Height: (with cooler + PCB + Bottom) 33mm |
Download : Noah6-E3845 Quick HW Manual v1.0.2.pdf
